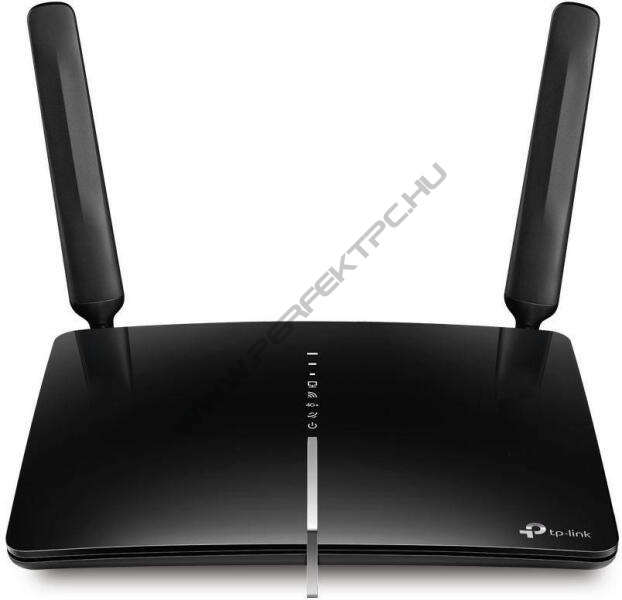

TP-LINK Archer MR600 4G+ WiFi router AC1200

HARDWARE FEATURES

Interface 1 × 10/100/1000 Mbps LAN/WAN Port
3 × 10/100/1000 Mbps LAN Ports
1 × Nano SIM Card Slot
2 × External SMA-F Antenna Interface
Button WPS/Reset Button, WiFi On/Off Button, Power On/Off Button
External Power Supply Power Adapter: : Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 1.5A
Dimensions ( W x D x H ) 202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in)
Antenna 2 × Detachable 4G LTE Antennas
WIRELESS FEATURES

Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Reception Sensitivity 5 GHz: 11a 54M: -77 dBm
11ac HT20: -73 dBm
11ac HT40: -68 dBm
11ac HT80 : -64 dBm
11n HT20: -77 dBm
11n HT40: -73 dBm
2.4 GHz: 11g 54M: -74 dBm
11n HT20: -72 dBm
11n HT40: -69 dBm
Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover Yes
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Network Type 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Carrier Aggregation:
B1+B3/B5/B7/B8/B20
B3+B1/B3/B5/B7/B8/B20/B28/B38/B40
B5+B1/B3/B5/B7/B40
B7+B1/B3/B5/B7/B8/B20/B28
B8+B1/B3/B7
B20+B1/B3/B7
B28+B3/B7/B40
B38+B38
B40+B40
B41+B41
SOFTWARE FEATURES

Quality of Service Bandwidth Control
Security DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features TP-Link Cloud, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS TP-Link, DynDns, NO-IP
VPN PPTP VPN, OpenVPN, IPSec VPN
Access Control Parental Control, Local Management Control
Protocols IPv4, IPv6
Guest Network 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1
OTHER

Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
IPv6 DHCP Server
IP address assignment (DHCPv6)
• Port: 5525 Protocol: UDP
• Port: 5561 Protocol: UDP
DNS
DNS
• Port: 53 Protocol: TCP
App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20002 Protocol: TCP
CWMP
CPE WAN Management Protocol
• Port: 7547 Protocol: TCP
OTHERS

Certification CE, RoHS
Package Content 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Environment Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Garancia: 36 h?
