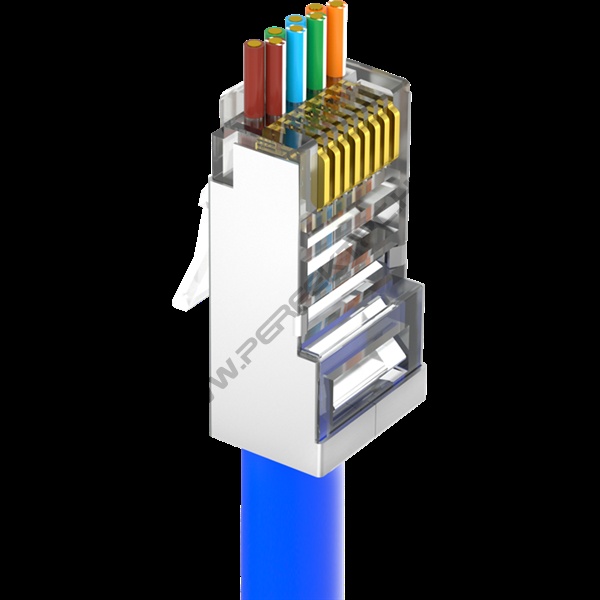

Walisec csatlakozó - RJ45-P6S (RJ45, Cat6, árnyékolt, 8P8C, aranyozott, befűzős) 100db/csomag

Connector Type

Category

Cat 6

Type

8P8C (Eight Position, Eight Contact)

Shielding

Shielded

Material

Housing Material

Polycarbonate

Shielding Material

Brass with nickel plating

Contact Material

Copper

Contact Surface Material

Gold Plating on Nickel Barrier

Gold Plating Thickness

3U (3μin or 0.0762 µm)

Electrical Properties

Voltage/Current Rating

125 VAC / 1.5 A

Insulation Resistance

≥ 500 MΩ

Contact Resistance

≤ 20 mΩ

Dielectric Withstand Voltage

1500 V DC/AC Peak

Mechanical Properties

Durability

≥ 1250 mating cycles

Wire Gauge

0.85 mm ≤ O ≤ 1.1 mm

Environment

Operating Temperature

-40°C to 70°C

Operating Humidity

RH 10% to 90% (non-condensing)

Storage Temperature

-40°C to 80°C

Storage Humidity

RH 5% to 96% (non-condensing)

General

Dimension

23x12x8 mm (LxWxH)

Net Weight

2.2 g
