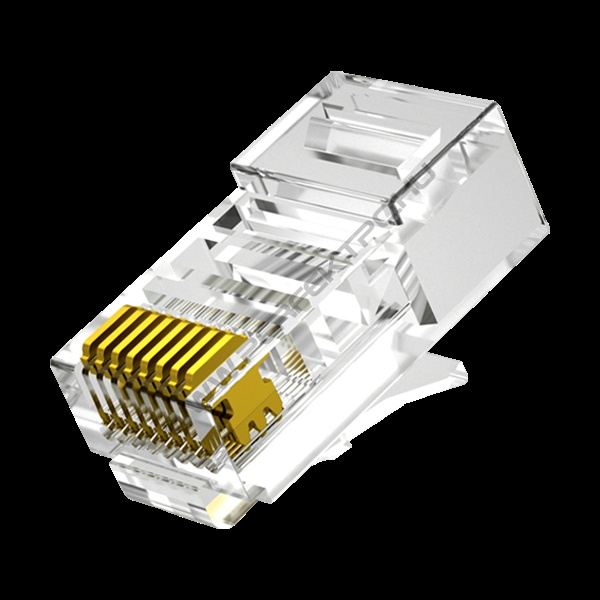

Walisec csatlakozó - RJ45-P5EU (RJ45, Cat5e, árnyékolatlan, 8P8C, aranyozott, befűzős) 100db/csomagUSB-C-->VGA (USB 3.0) átalakító Gembird A-CM-VGAF-01
Walisec csatlakozó - RJ45-5EU (RJ45, Cat5e, árnyékolatlan, 8P8C, aranyozott) 100db/csomag
Walisec csatlakozó - RJ45-5EU (RJ45, Cat5e, árnyékolatlan, 8P8C, aranyozott) 100db/csomag
Connector Type
Ca...
Fogyasztói ár kedvezménnyel
Webshop ár: 3.821 Ft
Kedvezmény
Leírás
Garancia: 36 hó
|
Connector Type |
|
|
Category |
Cat 5e |
|
Type |
8P8C (Eight Position, Eight Contact) |
|
Shielding |
Unshielded |
|
|
|
|
Material |
|
|
Housing Material |
Polycarbonate |
|
Contact Material |
Copper |
|
Contact Surface Material |
Gold Plating on Nickel Barrier |
|
Gold Plating Thickness |
1U (1μin or 0.0254µm) |
|
|
|
|
Electrical Properties |
|
|
Voltage/Current Rating |
125 VAC / 1.5 A |
|
Insulation Resistance |
≥ 500 MΩ |
|
Contact Resistance |
≤ 20 mΩ |
|
Dielectric Withstand Voltage |
1500 V DC/AC Peak |
|
|
|
|
Mechanical Properties |
|
|
Durability |
≥ 1000 mating cycles |
|
Wire Gauge |
0.85 mm ≤ O ≤ 1.1 mm |
|
|
|
|
Environment |
|
|
Operating Temperature |
-40°C to 70°C |
|
Operating Humidity |
RH 10% to 90% (non-condensing) |
|
Storage Temperature |
-40°C to 80°C |
|
Storage Humidity |
RH 5% to 96% (non-condensing) |
|
|
|
|
General |
|
|
Dimension |
23x12x8 mm (LxWxH) |
|
Net Weight |
1.5 g |
|
|
|
|
Diagram |
|
Garancia: 36 hó
